Initial Deployment Steps

Once you have purchased the Roster Manager iPart, the following deployment steps are required:

  1. Create the panel sources
  2. Create the general lookup tables
  3. Create the content type

1. Creating the panel sources

The following panel sources must be created:

  • CSI_RosterManager_Action - When users submit a request using the iPart, an entry is saved into CSI_RosterManager_Action as summary information.
  • CSI_RosterManager_ActionItem - Details regarding the request are saved into CSI_RosterManager_ActionItem.
  • CSI_RosterManager_ActionDetails - For easier reporting of the action detail each time the Roster Manager iPart is used,the CSI_RosterManager_ActionDetails source will store the action details specific to the user record that was selected for the action. This panel source is also a good place to store the answers to the additional information questions that will be used within the iPart.

Do the following to create the panel sources:

  1. Go to RiSE > Panel Designer > Panel sources.
  2. Select Add new panel source:
    • Source name - CSI_RosterManager_Action
    • Parent type - Contact
    • Multi-instance - Enabled
  3. Click Save.
  4. Select Add new property, and add the following properties:

    5. Property name

    Property type

    Length

    Data to be stored

    ActionKey

    Text

    36

    Unique identifier (GUID) - Primary Key

    Code

    Text

    30

    Workflow action code

    Status

    Text

    1

    Status of transaction

    A - Active
    B - Busy
    C - Cancelled
    D - Done
    E - Error

    Message

    Text

    4000

    Response message

    Exception

    Text

    4000

    Exception error

    DateAdded

    Date and Time



    UTC date and time record was added

    LastUpdated

    Date and Time



    UTC date and time record was last updated

  5.  Go back to RiSE > Panel Designer > Panel sources.
  6. Select Add new panel source:
    • Source name - CSI_RosterManager_ActionItem
    • Parent type - Contact
    • Multi-instance - Enabled
  7. Click Save.
  8. Select Add new property, and add the following properties:

    9. Property name

    Property type

    Length

    Data to be stored

    ActionKey

    Text

    36

    Unique identifier (GUID) tie back to Activity record

    ItemKey

    Text

    36

    Unique identifier (GUID) - Primary Key

    SelectedId

    Text

    10

    (Effected) iMIS ID of the person being selected (altered/changed)

    Blob

    Upload File



    Workflow definition compressed and serialized

    Status

    Text

    1

    Status of transaction

    A - Active
    B - Busy
    C - Cancelled
    D - Done
    E - Error

    Message

    Text

    4000

    Response message

    Exception

    Text

    4000

    Exception error

    DateAdded

    Date and Time



    UTC date and time record was added

    LastUpdated

    Date and Time



    UTC date and time record was last updated

  9. Go back to RiSE > Panel Designer > Panel sources.
  10. Select Add new panel source:
    • Source name - CSI_RosterManager_ActionDetails
    • Parent type - Contact
    • Multi-instance - Enabled
  11. Click Save.
  12. Select Add new property, and add the following properties:

    13. Property name

    Property type

    Length

    Data to be stored

    Action

    Text

    100

    Action "code" or "label" to see the action that was selected

    TransactionDate

    Date



    Current Date when action was taken

    LoggedInUserID

    Text

    40

    Logged in User that completed action

    CompanyID

    Text

    40

    Selected ID where the action was completed

    Date1

    Date



    Answer to a date field using in additional info section

    Date2

    Date



    Answer to a date field using in additional info section

    Date3

    Date



    Answer to a date field using in additional info section

    File1

    File Upload



    File added in additional info section

    File2

    File Upload



    File added in additional info section

    File3

    File Upload



    File added in additional info section

    Text1

    Text

    500

    Answer to a text field used in additional info section

    Text2

    Text

    500

    Answer to a text field used in additional info section

    Text3

    Text

    500

    Answer to a text field used in additional info section

  13. Add other field types based on the data from the additional info section that you want to store, i.e. decimal, integer, yes_no, etc.

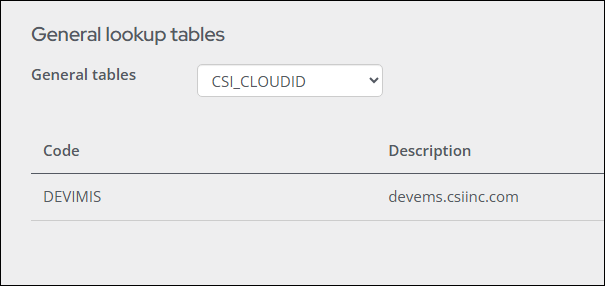

2. Creating the general lookup tables

When the iPart sends a request to Azure to complete a workflow process, the following information is used to validate your Roster Manager iPart license.

Do the following to create the tables:

  1. Go to Settings > General lookup tables.
  2. Select Add new table:
    • Table name - CSI_CLOUDID
    • Code - Cloud ID provided by CSI at time of purchase (Ex: DEVIMIS)
    • Description - iMIS URL (e.g., devems.csiinc.com)

      • Note: If you have multiple domain names that need to refer to the same CSI Cloud ID instance, you can add another general lookup entry in the CSI_CLOUDID table and use the Expansion field to store the CSI Cloud ID. In this case the Code value will be discarded, and the Expansion value will be substituted instead. For example:

      • Code - DEVIMIS203A
      • Description - devems-staging.csiinc.com
      • Expansion - DEVIMIS203

  3. Click Save & Continue.
  4. Click Close.

  5. From the General tables drop-down, choose (None selected).

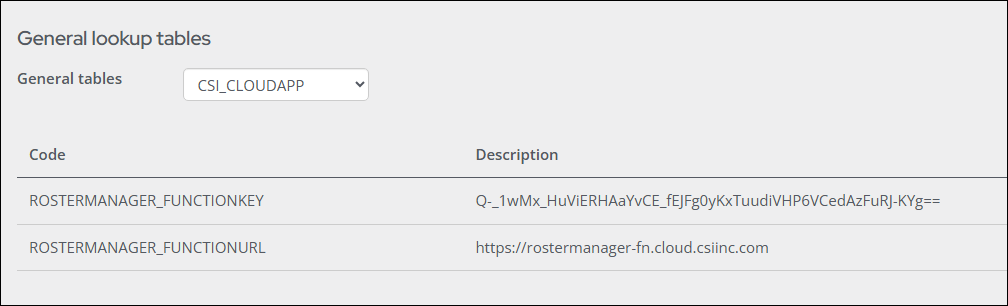

  6. Select Add new table:
    1. Table name - CSI_CLOUDAPP
    2. Code - ROSTERMANAGER_FUNCTIONURL
    3. Description - https://rostermanager-fn.cloud.csiinc.com
    4. Click Save & Continue.
    5. Code - ROSTERMANAGER_FUNCTIONKEY
    6. Description - Q-_1wMx_HuViERHAaYvCE_fEJFg0yKxTuudiVHP6VCedAzFuRJ-KYg==
    7. Click Save & Continue.
    8. Click Close.

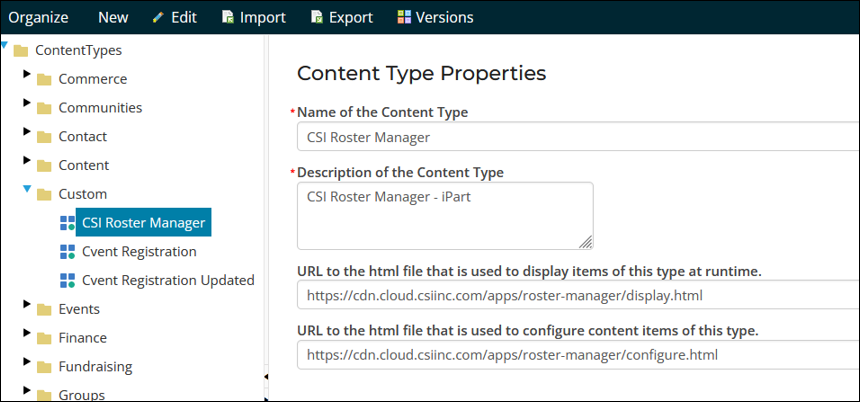

3. Creating the content type

Do the following to create a new content type:

  1. Go to RiSE > Maintenance > Content types.
  2. Select the Custom folder.
  3. Select New > Content Type.
  4. Select Client-based (preferred):
    1. Name of Content Type - CSI Roster Manager
    2. Description of Content Type - CSI Roster Manager - iPart
    3. URL to the html file that is used to display items of this type at runtime - https://cdn.cloud.csiinc.com/apps/roster-manager/display.html
    4. URL to the html file that is used to configure content items of this type - https://cdn.cloud.csiinc.com/apps/roster-manager/configure.html
